The AC Series is a versatile 500×500 mm LED display cabinet for both indoor and outdoor use. It supports indoor pixel pitches of P1.56, P1.9 and P2.6, and outdoor pixel pitches of P2.9 and P3.91. Designed for fast deployment and creative shapes, it features a buckle-type independent control box, a semi-automatic corner protector, a 45° cutting edge that enables 90° right-angle and cube screens, and convenient front and rear maintenance for both indoor and outdoor installations.

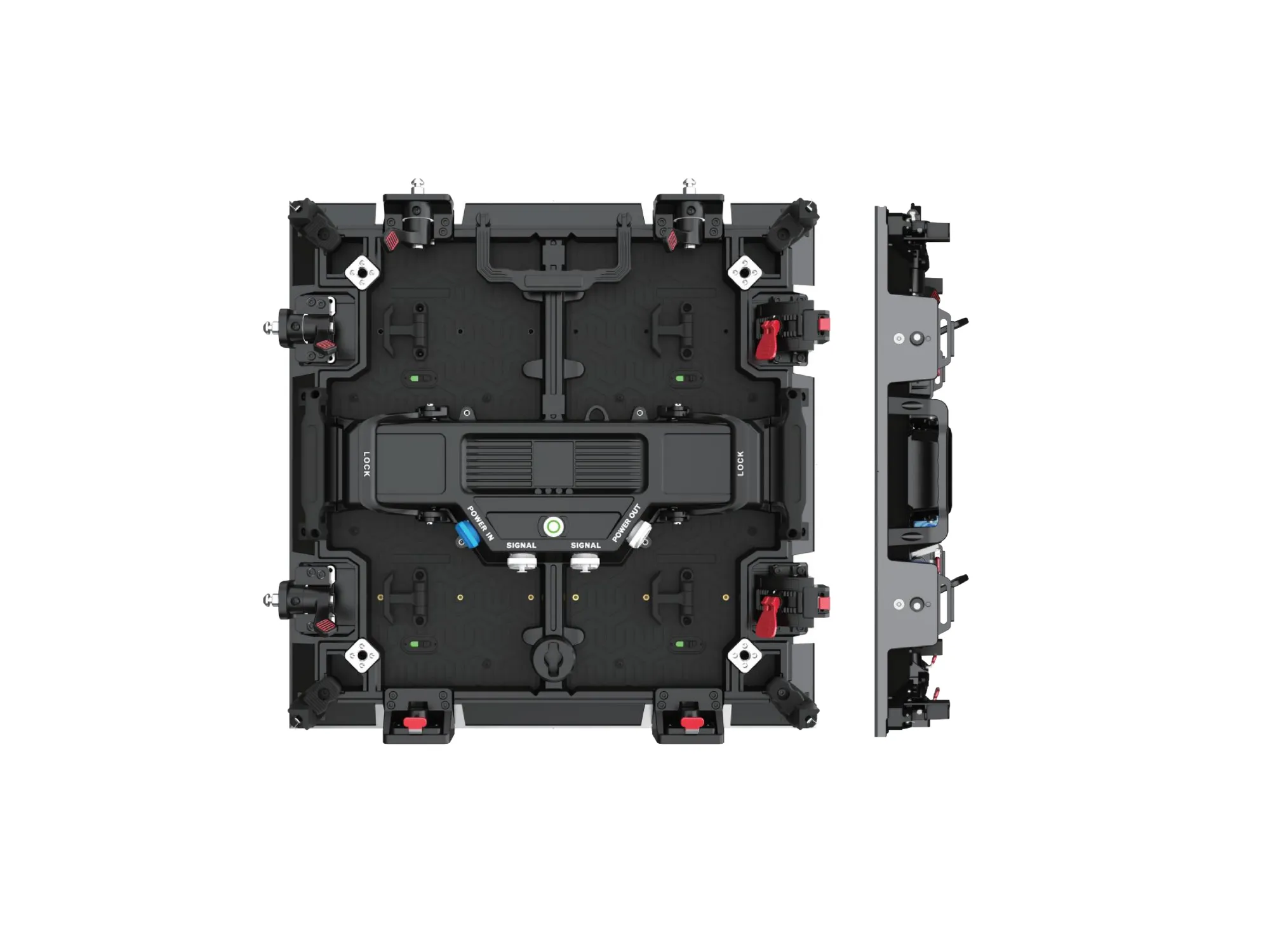

500×500 mm cabinet.
500×500 mm cabinet.
Power box, top & bottom lock, curve lock, and right-angle & cube connecting plate.
Power box, top & bottom lock, curve lock, and right-angle & cube connecting plate.
Power box, top & bottom lock, curve lock, and right-angle & cube connecting plate.
The AC Series supports multiple cabinet configurations: straight, curve shape, right angle and cube shape.
The AC Series supports multiple cabinet configurations: straight, curve shape, right angle and cube shape.
The AC Series supports multiple cabinet configurations: straight, curve shape, right angle and cube shape.
Indoor: 2 mm PCB and non-full-cover basic; magnesium alloy basic cover, suitable for indoor and outdoor small pixels.

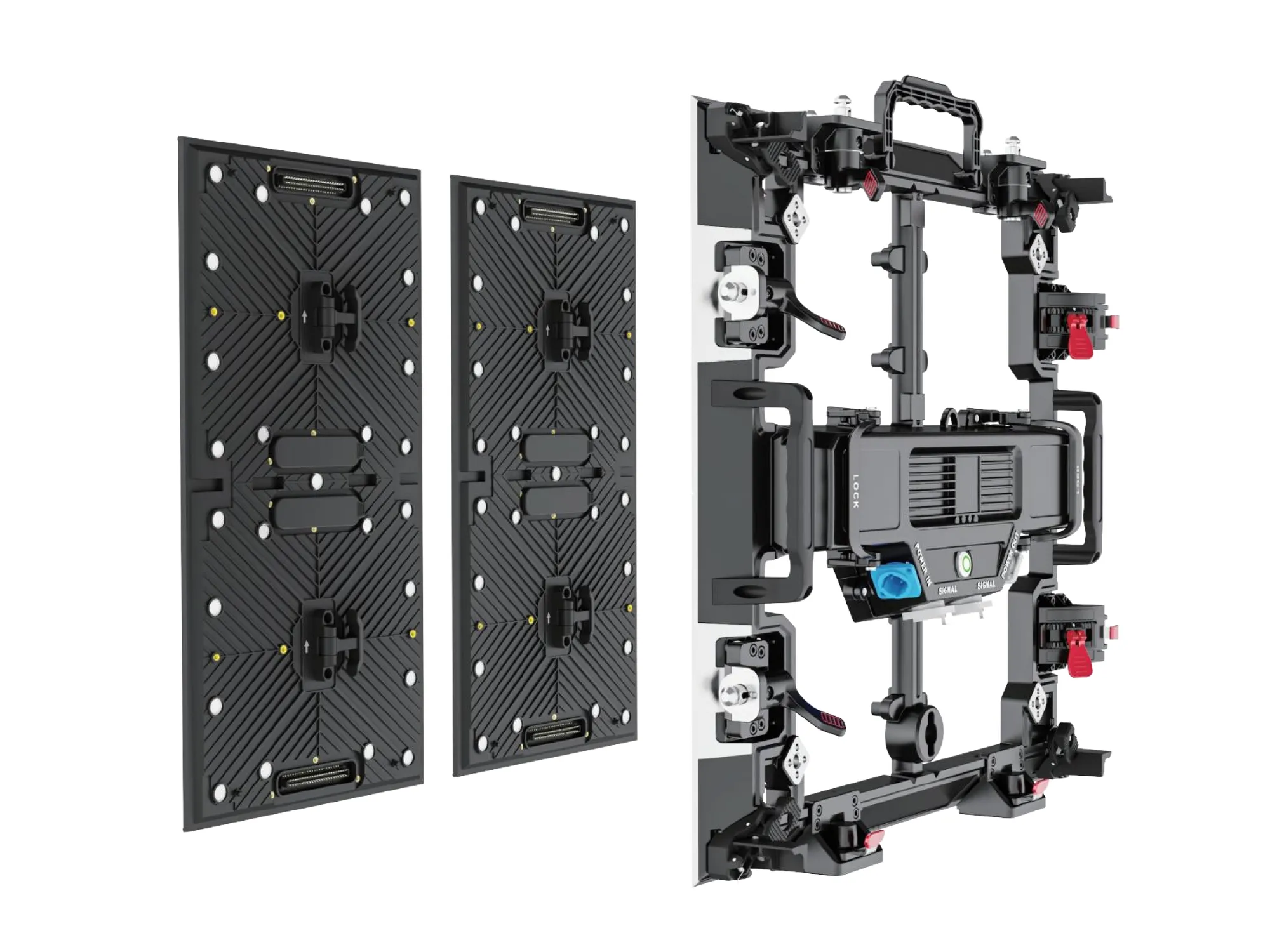

Outdoor: embedded module basic, module dimension is 250×500 mm.
Indoor: 2 mm PCB and non-full-cover basic; magnesium alloy basic cover, suitable for indoor and outdoor small pixels.
Outdoor: embedded module basic, module dimension is 250×500 mm.
Power box, top & bottom lock, curve lock, and right-angle & cube connecting plate.
2 mm thickness PCB board has better strength for panel flatness. Includes PCB front face, PCB rear face and PCB internal 2-layer circuit.
The indoor module is non-full-cover basic and is supported by 12 pcs small pillars. A metal structure is chosen for better precision instead of a plastic material module basic.
228×500 mm size, 1 pc for 90°.
2.5 degrees adjustment, single cabinet maximum adjustment ±45°, 250×500 mm size module.
Triangle and sector cabinets, plus creative splicing shapes such as spaceship, Christmas trees, heart-shaped, Chinese knot, round, diamond, wings, and alphabet letters. A four-corner fan-shaped module allows creative rental shapes, with four-sector modules in four directions for consistent color.
Complete stacking system including connecting cylinder, stacking shelf, connection beam for stacking systems, ground beam and stacking base.
For small-sized exhibitions
A smart phone connects the sending card or the video processor directly without needing a computer.
Manage, edit, and send the program through an APP on the smart phone.
Display a picture of any size within the resolution of 3,840*2,160.
