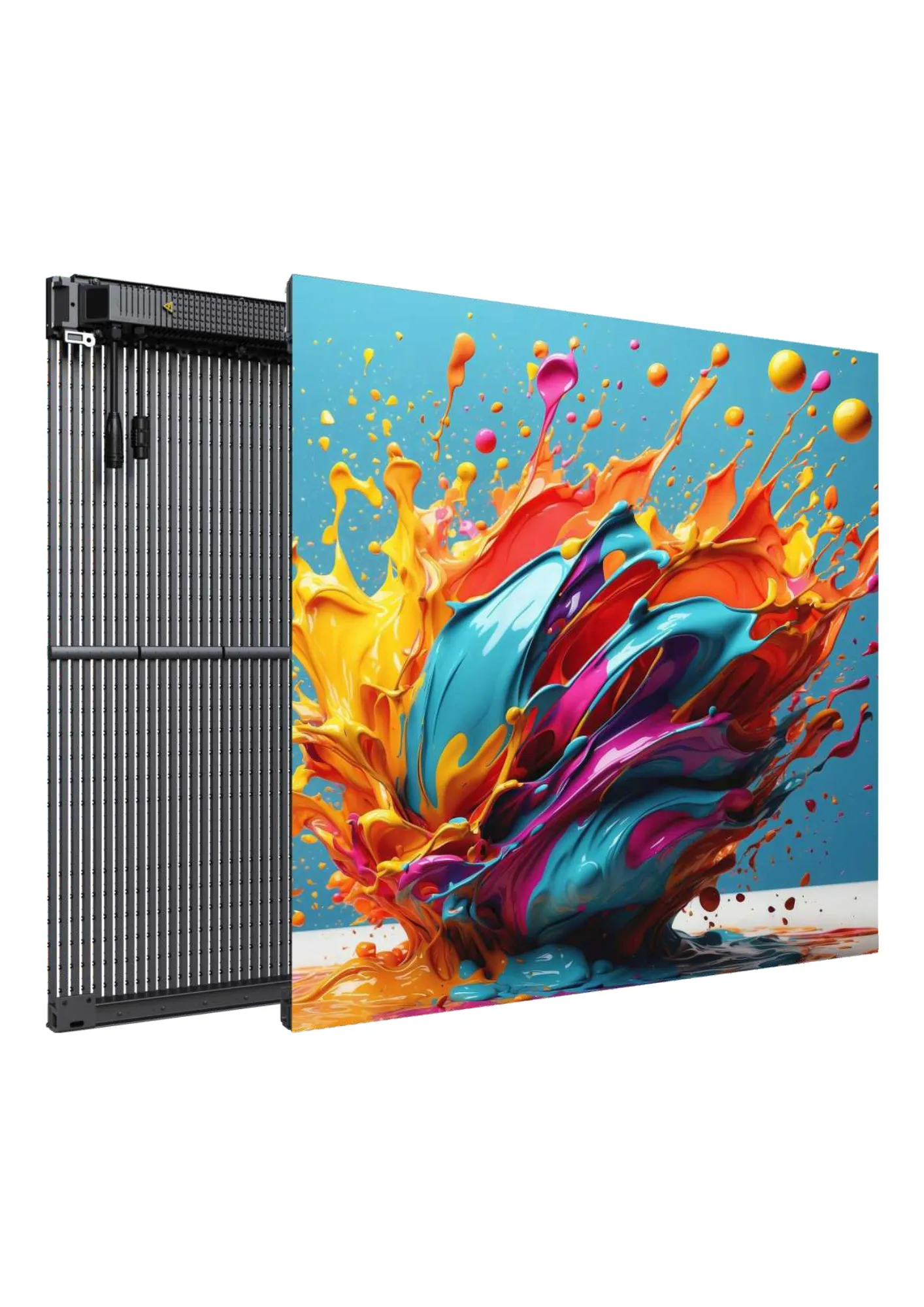

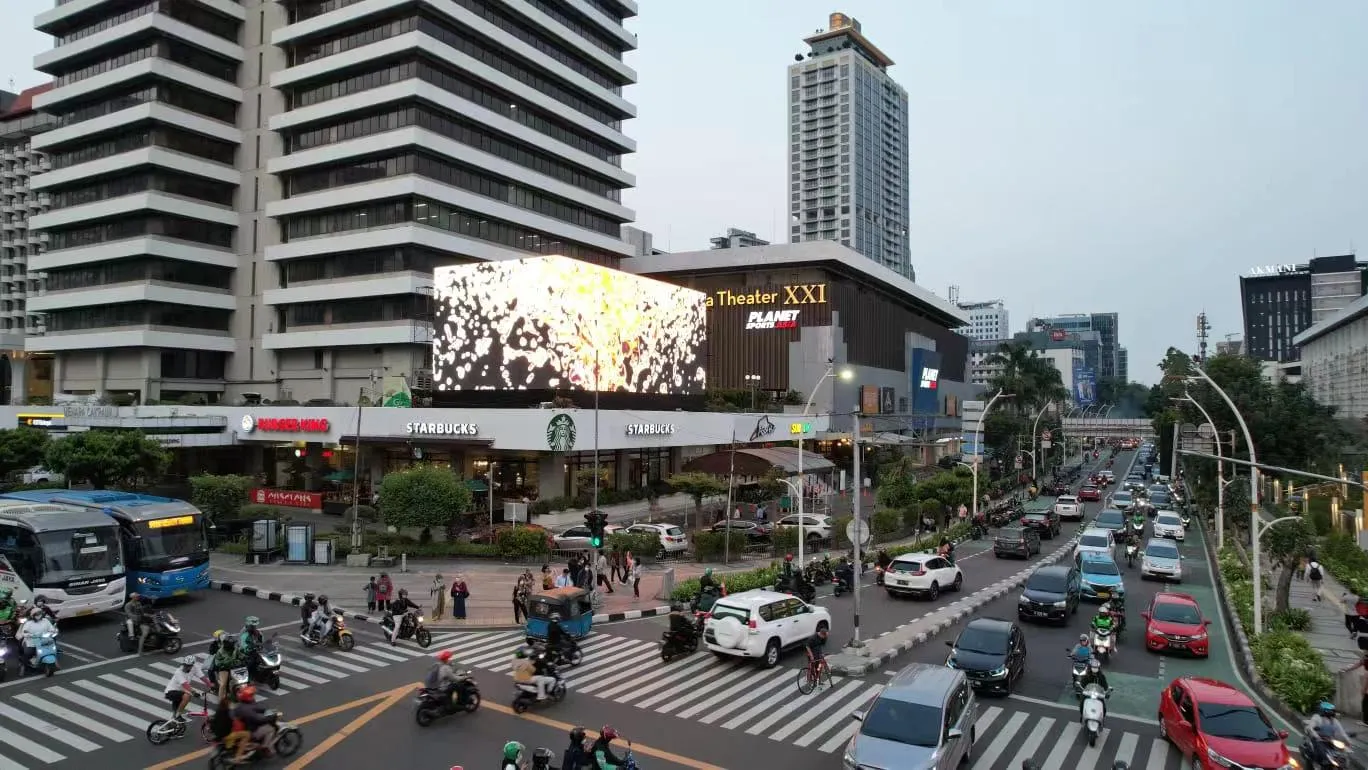

The Platinum Mesh Series is an outdoor transparent LED display solution designed to merge high-impact visuals with see-through architecture. Combining up to 71% transparency, 10,000 nits brightness and IP68 protection, it lets buildings communicate without blocking light or views — ideal for glass facades, media architecture and flagship retail.

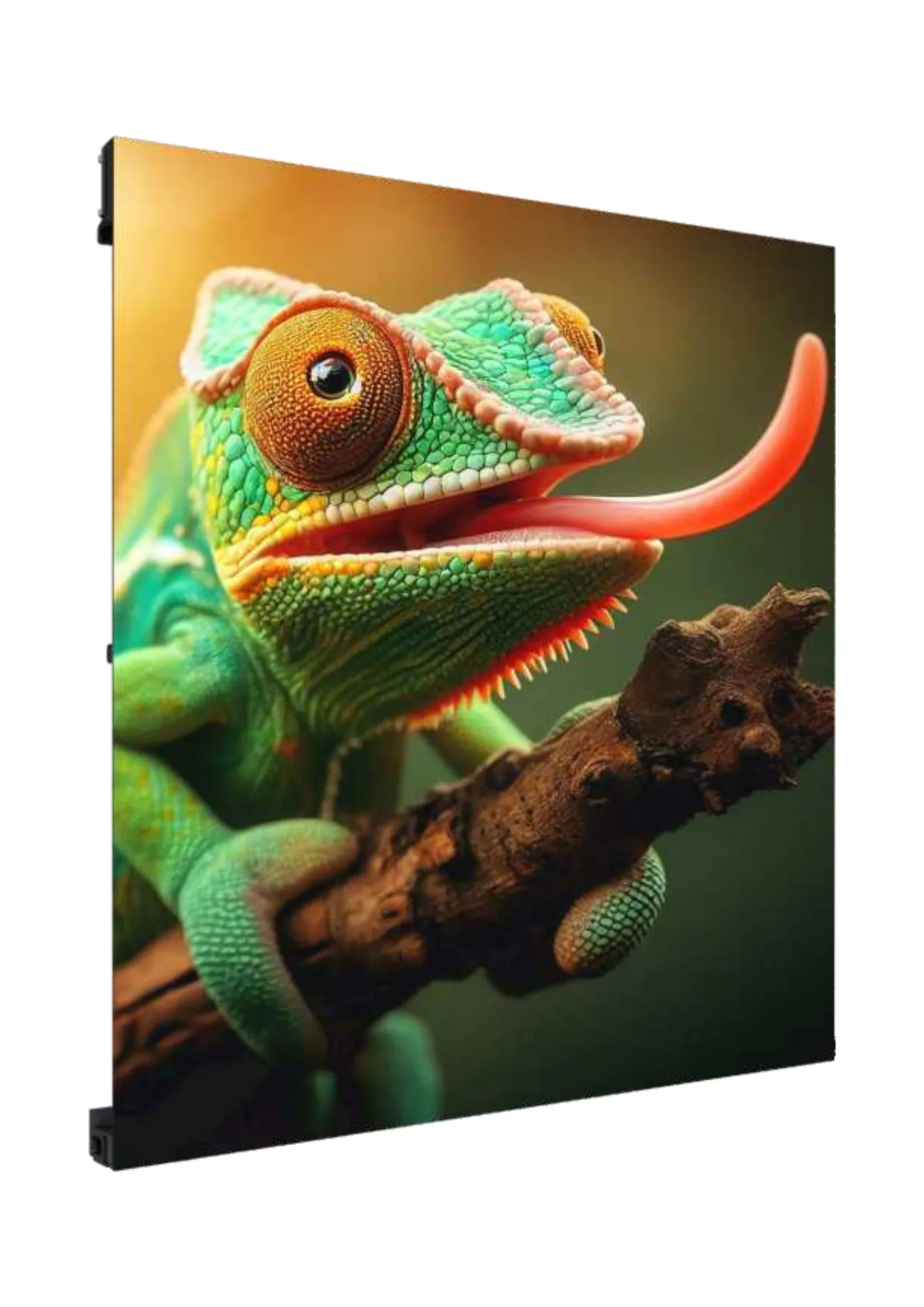

The system achieves IP68 protection, providing superior resistance against water and dust for reliable operation in harsh outdoor environments.
- Seamless light bar modules with triple waterproof protection (silicone gaskets, fully potted modules, double-layer sealed interfaces)
- Power box dual-layer protection with automotive-grade gaskets and a top waterproof cap
- Smooth back structural design that minimizes dust and water accumulation
The system achieves IP68 protection, providing superior resistance against water and dust for reliable operation in harsh outdoor environments.
- Seamless light bar modules with triple waterproof protection (silicone gaskets, fully potted modules, double-layer sealed interfaces)
- Power box dual-layer protection with automotive-grade gaskets and a top waterproof cap
- Smooth back structural design that minimizes dust and water accumulation

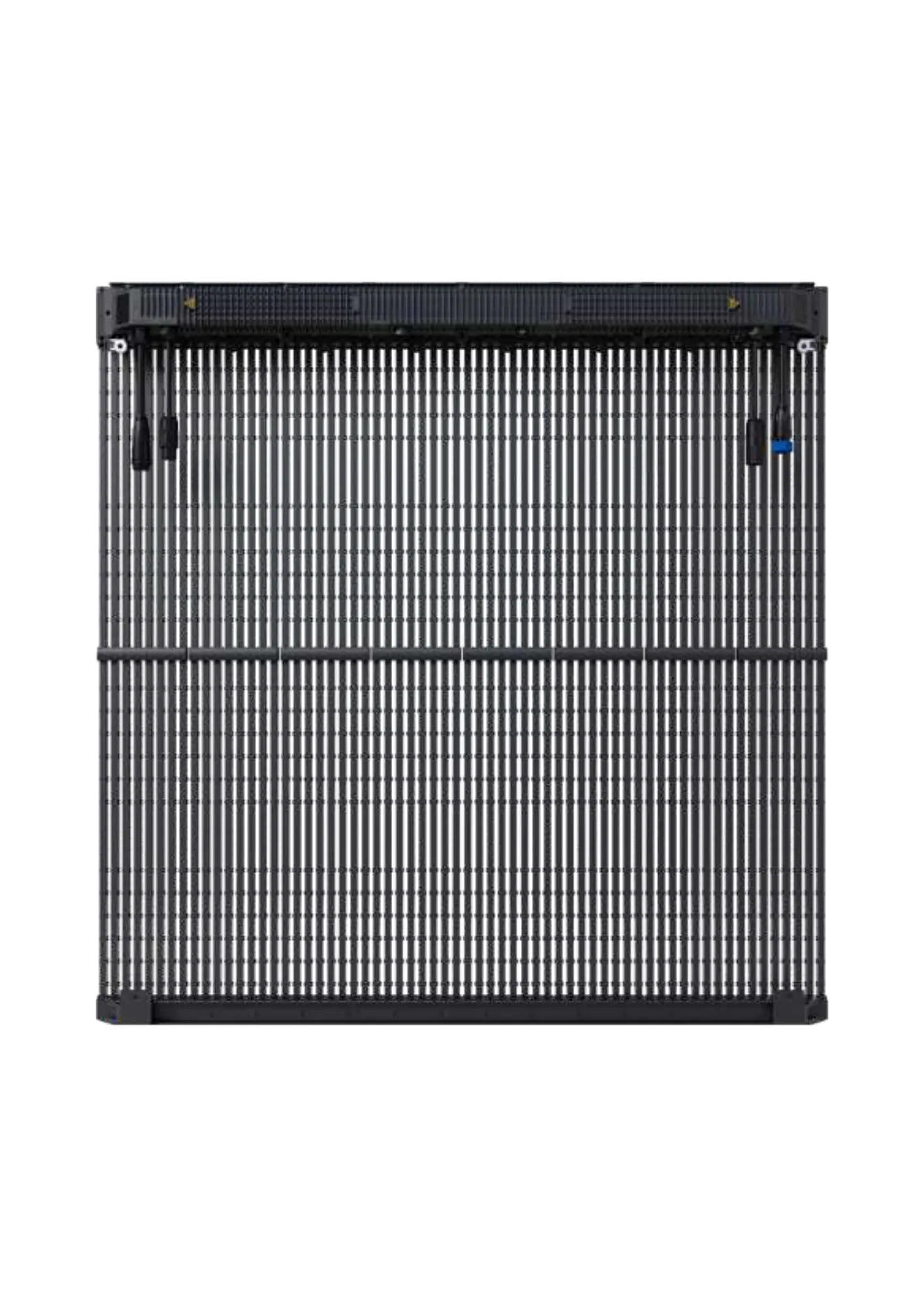

Up to 71% transparency keeps views unobstructed and preserves natural light for the people inside. A dual-backup system prevents blackouts, signal loss and display errors, ensuring continuous, reliable performance.
Up to 71% transparency keeps views unobstructed and preserves natural light for the people inside. A dual-backup system prevents blackouts, signal loss and display errors, ensuring continuous, reliable performance.
Up to 71% transparency keeps views unobstructed and preserves natural light for the people inside. A dual-backup system prevents blackouts, signal loss and display errors, ensuring continuous, reliable performance.
With a maximum brightness of 10,000 nits, the display stays vivid even under direct sunlight. A high 7,680Hz refresh rate keeps it completely flicker-free for cameras, while 16-bit grayscale delivers vibrant, detailed colors.
- 10,000 nits
- 16-bit grayscale
- 7,680Hz refresh rate
With a maximum brightness of 10,000 nits, the display stays vivid even under direct sunlight. A high 7,680Hz refresh rate keeps it completely flicker-free for cameras, while 16-bit grayscale delivers vibrant, detailed colors.
- 10,000 nits
- 16-bit grayscale
- 7,680Hz refresh rate
With a maximum brightness of 10,000 nits, the display stays vivid even under direct sunlight. A high 7,680Hz refresh rate keeps it completely flicker-free for cameras, while 16-bit grayscale delivers vibrant, detailed colors.
- 10,000 nits
- 16-bit grayscale
- 7,680Hz refresh rate
Each module is equipped with a safety tether to prevent accidental drops, ensuring safe and reliable installation and maintenance. The masks feature a screw-lock and latch design to prevent lifting or detachment.
Each module is equipped with a safety tether to prevent accidental drops, ensuring safe and reliable installation and maintenance. The masks feature a screw-lock and latch design to prevent lifting or detachment.
Up to 71% transparency keeps views unobstructed and preserves natural light for the people inside. A dual-backup system prevents blackouts, signal loss and display errors, ensuring continuous, reliable performance.
An innovative integrated design significantly reduces the number of connection cables. At all key connections, top-tier pin connectors are used throughout the cabinets, providing convenient, stable connection and eliminating the risk of connector failure.
Made from high-strength aluminum alloy, the light bar and power box offer both light weight and durability, with the screen weighing just 10 kg/m². This significantly reduces a building's load-bearing requirements, making installation highly adaptable.
The diamond-patterned surface reduces direct light reflection by dispersing it into diffuse reflection, resulting in deeper blacks and improved overall contrast. Even under strong sunlight, the display maintains clear, detailed visuals.
The power supply is thermally bonded to the aluminum alloy power box via thermal gel, forming an efficient heat dissipation path. Combined with a dedicated vent design, internal components remain consistently cool and dry — contributing to around 30% power saving.
The product supports both front and rear installation and maintenance, greatly enhancing flexibility and significantly reducing labor costs and time. Waterproof plugs allow tool-free cable connection, and an optional cabinet test button quickly locates a faulty LED bar.

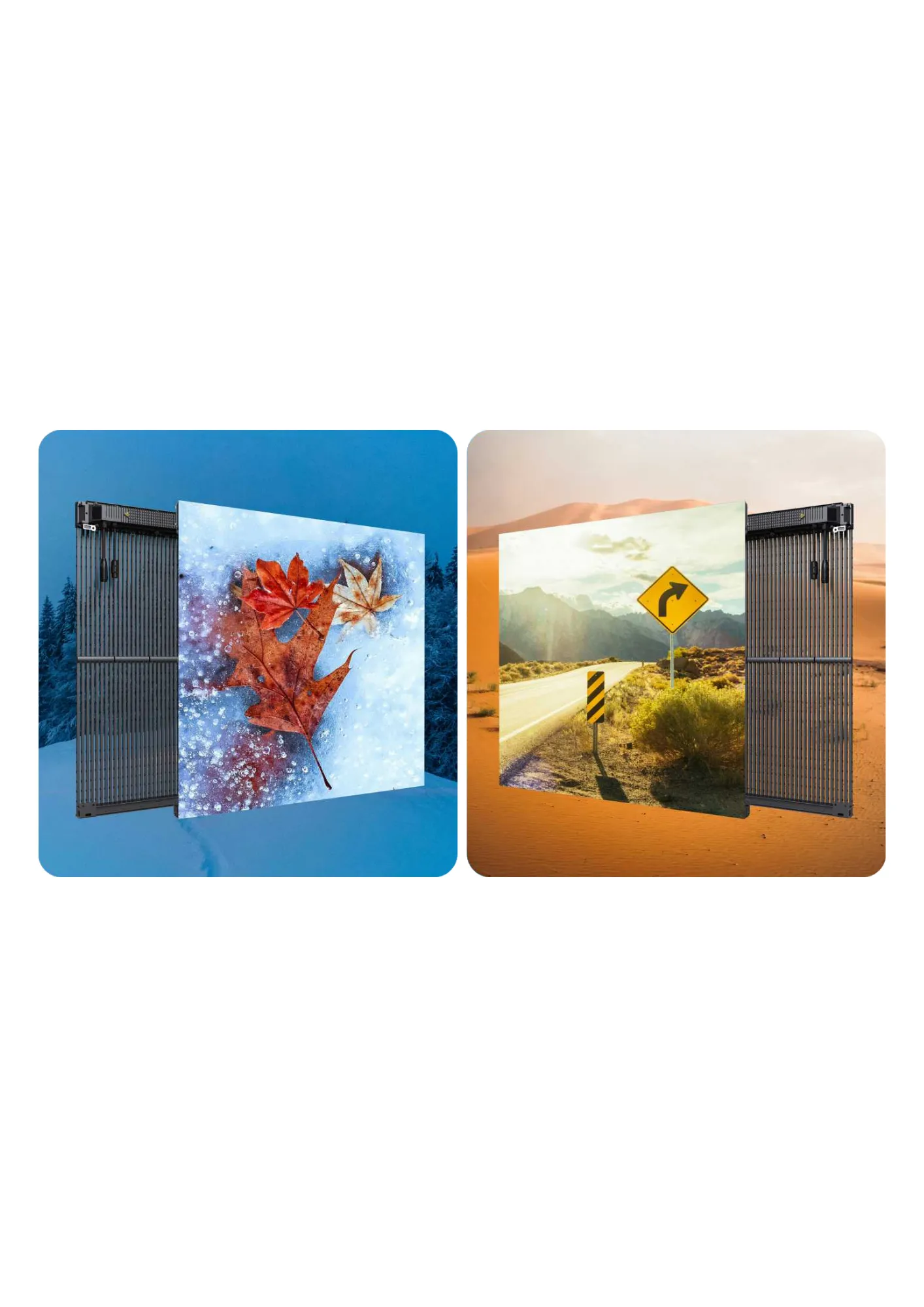

The cabinet and power box are made of high-strength aluminum alloy with a specialized structural design to minimize thermal expansion. Rigorously tested under high and low temperature conditions, the product ensures stable performance even in the most demanding environments.
Offers versatile shape options — from flat to adjustable convex (0–14°) and 90° concave designs — enabling creative installation possibilities for different spaces and visual concepts.
FAB-P15.6 — Pixel pitch 15.625 × 15.625 mm · 4,096 dot/m² · LIP 3747 / SMD 3535 · Module resolution 8 × 64 · Brightness 10,000 / 8,000 cd/m² · Permeability 45% · Cabinet weight 15 kg/m²
FAB-P20.8 — Pixel pitch 20.8333 × 20.8333 mm · 2,304 dot/m² · LIP 3747 / SMD 3535 · Module resolution 6 × 48 · Brightness 10,000 / 8,000 cd/m² · Permeability 60% · Cabinet weight 13 kg/m²
FAB-P31.2 — Pixel pitch 31.25 × 15.625 mm · 2,048 dot/m² · LIP 3747 · Module resolution 4 × 64 · Brightness 10,000 cd/m² · Permeability 71% · Cabinet weight 10 kg/m²
Common to all models:
- Drive mode: Constant Current
- Grey scale: 16 bit
- Refresh rate: 7,680 Hz
- Horizontal viewing angle: 160°
- Vertical viewing angle: Upward 25° / Down 75°
- Module size: 125 × 1,000 × 27.3 mm
- Cabinet size: 500 × 1,000 × 86.7 / 1,000 × 1,000 × 86.7 mm
- Input voltage: AC 100–240 V
- Working temperature: -40 ~ +55 °C
- Storage temperature: -40 ~ +60 °C
- Working humidity: 10% ~ 90% RH
- Maintenance: Front / Rear
- Life span: > 100,000 hours
- Ingress protection: IP68 / IP66
- Working environment: Outdoor
- Certificates: CE (LVD, EMC), ETL, CB, FCC
For small-sized exhibitions
A smart phone connects the sending card or the video processor directly without needing a computer.
Manage, edit, and send the program through an APP on the smart phone.
Display a picture of any size within the resolution of 3,840*2,160.
